By Lisa Jasa

Dean Stevens well knows the value of getting a bird's-eye view of his corn and soybean fields to assess plant health, wind damage, and pest threats — problems that, in their initial stages, may be difficult to assess on a field scale from conventional scouting.

Stevens, who farms near Falls City in southeast Nebraska, started aerially scouting his fields from small planes in the 1990s, taking photos to document plant health and wind damage. In the early 2000s, he got his sport pilot license and moved to a two-seater powered parachute to do aerial scouting. (View a 2016 flight online.) Flying just 30 to 100 feet above the crop allowed him to view fields more personally and evaluate stands, water needs, soil nutrition and pest pressures, taking photos that he shared with his crop consultant. Together they used the data he gathered to address problems in the field.

POWERED PARACHUTE: One of the methods Dean Stevens has used to scout his corn is a powered parachute sailing about 30 to 100 feet above the ground.

Now, with the support of a Farmer Rancher Grant from the North Central Region Sustainable Ag Research and Education Program (NCR-SARE), Dean is keeping his feet planted on the ground, while a drone outfitted with infrared sensors  scouts his fields each week, providing key data that can be used to develop prescriptions for targeted, precise in-season nitrogen applications.

On-Farm Research tests N applications
A longtime advocate of on-farm research, Dean has been conducting field trials on his farm since 1974 when he graduated from the University of Nebraska-Lincoln with a major in soil science. He has evaluated crop hybrids, fertility, population, seed treatments, fungicides and nitrogen applications. In 2016, Dean and his wife, Debra, applied for and received a $15,000, two-year NCR-SARE farmer-rancher producer grant to study how to conserve nitrogen use in corn production by applying a larger amount in-season, based on crop need. The project is:
• assessing cutting-edge technologies for determining optimum nitrogen rates
• demonstrating the efficiency of applying a higher percentage of nitrogen in-season
• using variable-rate technology to apply precise nitrogen rates, based on data gathered from drone mounted sensors

This year, in the first year of the grant, the Stevenses established their research study in a bottomland rain-fed field of silty clay loam with some silt loam soils. They're testing their current preplant nitrogen rate (160 pounds per acre N) and two lower rates (100 and 75 pounds per acre N), replicating each rate four times. By applying more nitrogen in season, they can respond to each season's specific conditions. For example, if early mineralization is higher than normal, the in-season N application rate can be decreased, or if early-season rains may have leached some nitrogen, rates can be increased.

Good stewardship is also an important aspect of moving more of the nitrogen application to in season based on plant need, Debra says, noting the practice could provide both environmental and economic benefit.

Gathering data via drone

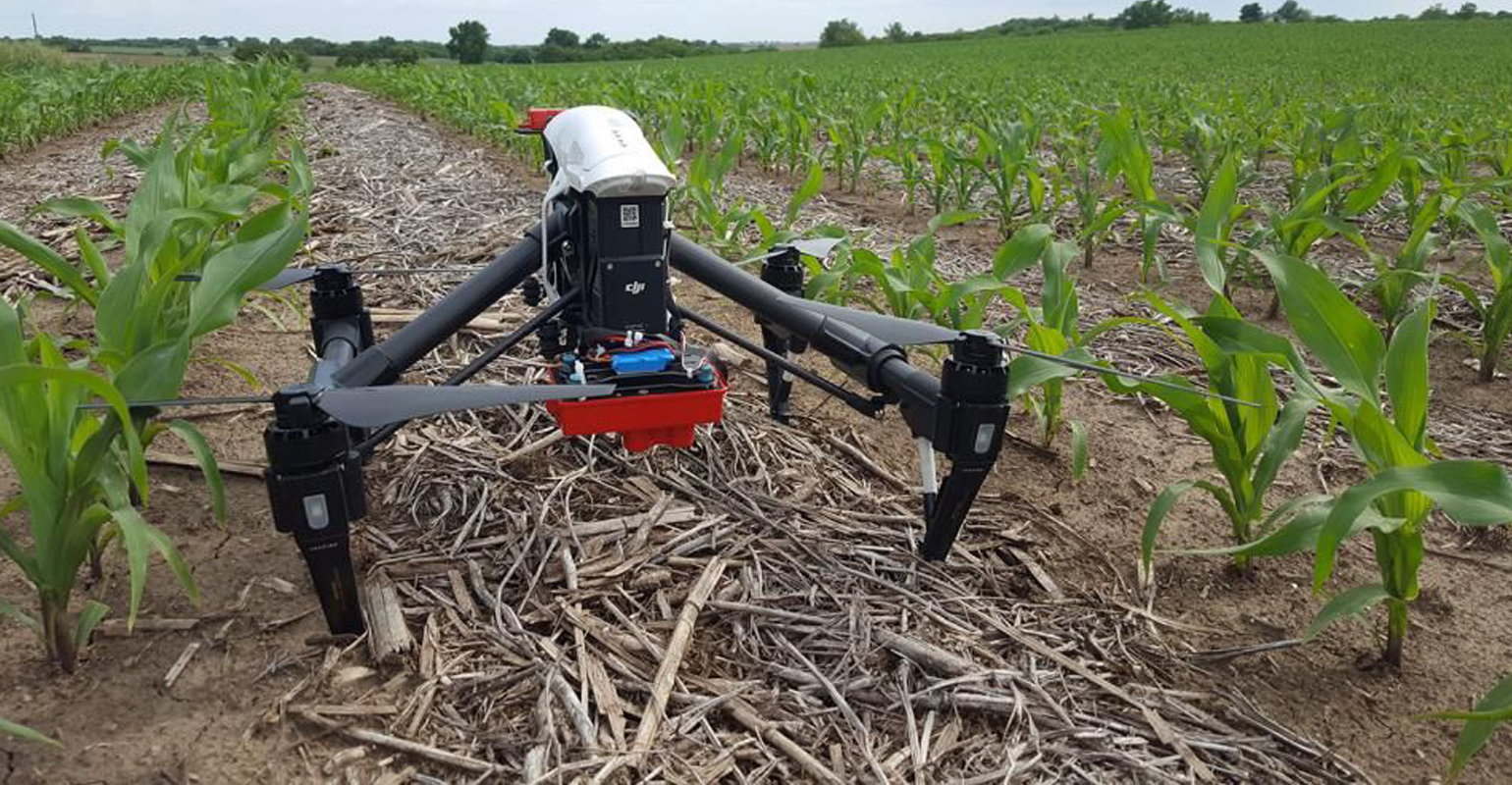

To assess the effect of the different rates on plant nitrogen, a drone outfitted with infrared sensors was flown weekly over the field trials by daughter and son-in-law Laura and Nathan Thompson, both of whom have FAA remote pilot certificates. The sensor data was then coupled with two algorithms and UNL's Hybrid-Maize models to calculate the optimal in-season nitrogen rate for each strip.

BIRD'S-EYE VIEW: Sensor data collected by the drone was coupled with two algorithms and UNL's Hybrid-Maize models to calculate the optimal in-season nitrogen rate for each strip. "The imagery indicated deficiencies before my eyes could detect it," says farmer researcher Dean Stevens.

"The imagery indicated deficiencies before my eyes could detect it," Dean says. "We monitored the fields closely and planned the in-season nitrogen we would need to reach our full yield potential."

"As we suspected, there was a lot of variability across the field in nitrogen need," he notes. Applying fertilizer based on the infrared imagery may not necessarily mean less nitrogen is applied, but rather that what is applied is targeted to exactly how much is needed, where it's needed. And when it's needed, increasing nitrogen-use efficiency and reducing the potential for nitrogen loss.

The corn was too high for a sidedress application, and Dean worked with an aerial applicator who could make precision applications of dry urea to individual test strips.

Traditionally, growers might use a predetermined rate and time of application or wait until the plant's need for nitrogen was visible, which might cost the grower potential yield, Dean says. Using the infrared imagery provided by the drone flights allowed earlier detection of plant nitrogen needs so they could be addressed before yield was affected.

"We provided the aerial applicator a variable-rate prescription, and within each pass, they changed the rate according to the plan."

Steep adoption curve
Adopting the drone technology had its challenges, but was made easier with some "high-tech children," Dean says. Their daughter Laura, a Nebraska Extension educator for agricultural technologies, is also a coordinator for the Nebraska On-Farm Research Network, and Nathan works in agriculture. Also contributing to the project through development of educational events is Gary Lesoing, Nebraska Extension crops educator with responsibilities for Nemaha and Richardson counties.

"This technology is still in its infancy with multiple firmware and software updates required for almost every flight," Dean says. "It's not just plug-and-play. To record the imagery correctly, it's a little more difficult."

VISIBLE DIFFERENCES: Imagery collected with a drone and multispectral sensor on June 24 show true color imagery (left)  and Normalized Difference Red Edge imagery (right) with blue corresponding to higher NDRE values and red corresponding to lower NDRE values. Treatment differences (different nitrogen rates) are apparent, especially in the NDRE imagery.

Each flight may have as many as 4,000 single photos that need to be stitched together to create a single, high-resolution image of the field, Dean says. This compilation is done in the digital cloud by a commercial firm specializing in agricultural uses of drone imagery.

Flights also aren't necessarily a one-person job. Drone pilots are required by FAA to keep their eye on the drone at all times, while also piloting the drone from a screen, Debra says. While the drone flies a preset pattern to crisscross the field, it can still be helpful to have a two-person crew.

"When you're flying a drone at 300 feet in the summertime, you have to keep an eye and an ear toward sprayer planes," Dean says. There were several flights where they maneuvered their drone to the ground as a sprayer plane moved from one neighbor's field to another, crossing their flight path.

Next summer, during the second year of the grant, the research will continue on the Stevenses’ farm and be initiated on Dale and Ronda Yoesel's neighboring crop and dairy farm, allowing the on-farm researchers to collect data from two different fields with similar research protocols and management.

Jasa is CropWatch editor at the University of Nebraska-Lincoln. This report comes from UNL CropWatch.
