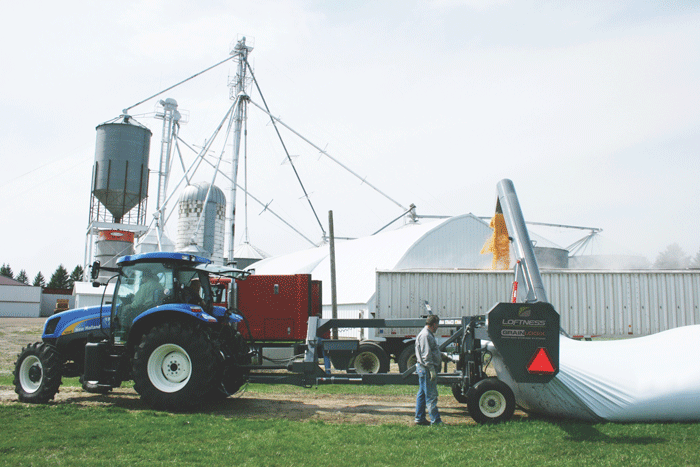

Loftness introduces the next generation of its GrainLogix GBU10 grain bag unloader.

Featuring an improved drive system, the unit is designed for fast, reliable removal of grain from 10-foot-diameter grain bags.

The GBU10 includes a 10-inch-diameter cross auger with a reconfigured drive to ensure various crops are evenly unloaded from the bag. The cross auger transfers grain to the 17-inch discharge auger, which then delivers it to a trailer or grain cart. The unit transfers grain at rates up to 8,500 bushels per hour, helping it to fill a 1,000-bushel trailer in about seven minutes.

The GBU10 also features a new hydraulically driven gearbox drive, which reduces the number of gear-reduction sprockets previously used. The unit offers convenient ground-level controls with a valve system that can be easily converted from open center to closed center hydraulics.

The bag roller contains new style welded teeth to ensure the bag is held securely, and the ends are capped to prevent the bag from overrunning the roller. Additionally, the unit contains an adjustable knife to cut the bag at the ideal angle. When a bag is fully unloaded, the operator can quickly disengage the roller drive without using tools to unroll the bag.

To transport the machine, the discharge auger can be folded via hydraulic controls. The auger drive is constructed to ensure the shafts always re-engage properly. The auger also features a hydraulically controlled adjustable spout for directing grain flow into the trailer hopper.

Introduced to the market in 2008, the GBU10 has been rigorously field proven and continuously refined to maximize durability and meet the heavy-duty demands of grain bagging. Additionally, industry-standard, off-the-shelf parts have been used throughout the design, allowing many operators to conduct their own repairs in the field.

The GBU10 requires a tractor with a 540-RPM, 50-horsepower PTO and a 6-gpm, 2,000-psi hydraulic system. An optional dual wheel kit for increasing flotation in soft terrain is available.

For more information on Loftness’ complete product line, contact Loftness Specialized Equipment, P.O. Box 337, Hector, Minn. 55342, call 800-828-7624 (U.S. and Canada) or 320-848-6266 (international), or visit http://www.grainlogix.com.
